Using the OSP-E…BHD belt driven actuators from the Parker Origa System Plus modular concept actuator range, Micromech have created a standard XYZ gantry assembly configurable to suit many applications.
- Max Stroke X and Y 5000mm*
- Max Stroke Z 1500mm*
- Max velocity 5m/s*
- Max payload 100kg*
- Max acceleration 50m/s2
* Subject to application

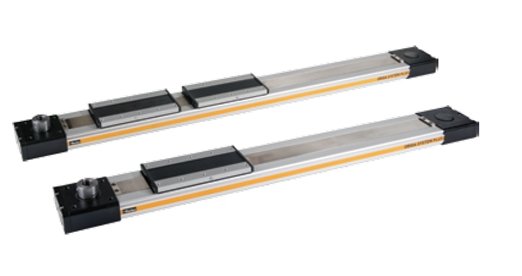

The Actuators:
The OSP-E..BHD series belt driven actuator with integrated guide combines robustness, precision and high performance. The aesthetic design is easily integrated into any machine constructions by virtue of extremely adaptable mountings.
Advantages
- Accurate Path and Position Control
- High Force Output
- High Speed Operation
- High Load Capacity
- Easy Installation
- Low Maintenance
- Ideal for Multi-Axis Applications
Features
- Integrated Ball Bearing Guide or Integrated Roller Guide
- Diverse Range of Multi-Axis Connection Elements
- Diverse Range of Accessories and Mountings
- Complete Motor and Control Packages
- Optional Integrated Planetary Gearbox
- Special Options on Request
- IP 54 environmental protection
Parker Origa actuators are available with a wide range of standard options and accessories including:
- Input shaft variants
- Integrated gearboxes
- Dual carriages
- Actuating direction
- Bi-parting versions
- Various motor mountings
- Various profile mounting options
- Contactless limit/home sensors
In addition to the many options offered with Parker Origa OSP-E actuators, Micromech can provide
- Custom XYZ configurations
- 3D models of you chosen gantry design
- Cable management
- Custom motor/gearbox mounting
- Mechanical limit/home sensors
- End effector brackets
- Control systems
Micromech are able to supply and provide expertise on Parker products. Contact our sales team on 01376 333333 or sales@micromech.co.uk for more information.
